SKYDRONE7 – NEW DRONE PERFORMANCE FOR MILITARY AND SECURITY NEEDS

Flight time

Flight time up to 74 min.

3D printed core

  • Enables lightweight structure and minimizes frame vibrations
  • Maximum performance and air data collection

High data security

  • For demanding high level security use
  • Nordic Drone’s manufacturing and maintenance process have been inspected and approved by the Finnish authorities
  • The UAV-system does not require registration nor do any updates to the external network unless the user wants to
  • Secured radio transmission using AES 128/256 encryption
  • The drone is only connected to a radio controller from which data can be routed out
  • Read more from here
  • Warranty policy

Technical information

  • Weight empty 2.2 kg
  • MTOW 6.4 kg
  • External dimensions 58 x 58 x 37 cm
  • Removable parts, packable in to a small case
  • Easy to assemble ready to use
  • Carbon fiber frame, 3D titanium core
  • Operating temperature – 20 – + 40 C (manufacturers recommendation)
  • Maximum flight time up to 74 min without payload (solid frame)
  • Maximum flight time up to 64 min without payload (detachable frame)
  • Maximum wind conditions 15 m/s
  • Maximum speed 22 m/s (max wind tolerance)
  • 18″ x 6.5″ carbon fiber propellers with quick locks
  • Capable of fully automated missions including takeoff and landing
  • Includes automatic return to home (RTH) function
  • Calibration free
  • Bright LED lights
  • Lithium Polymer (LiPo) battery

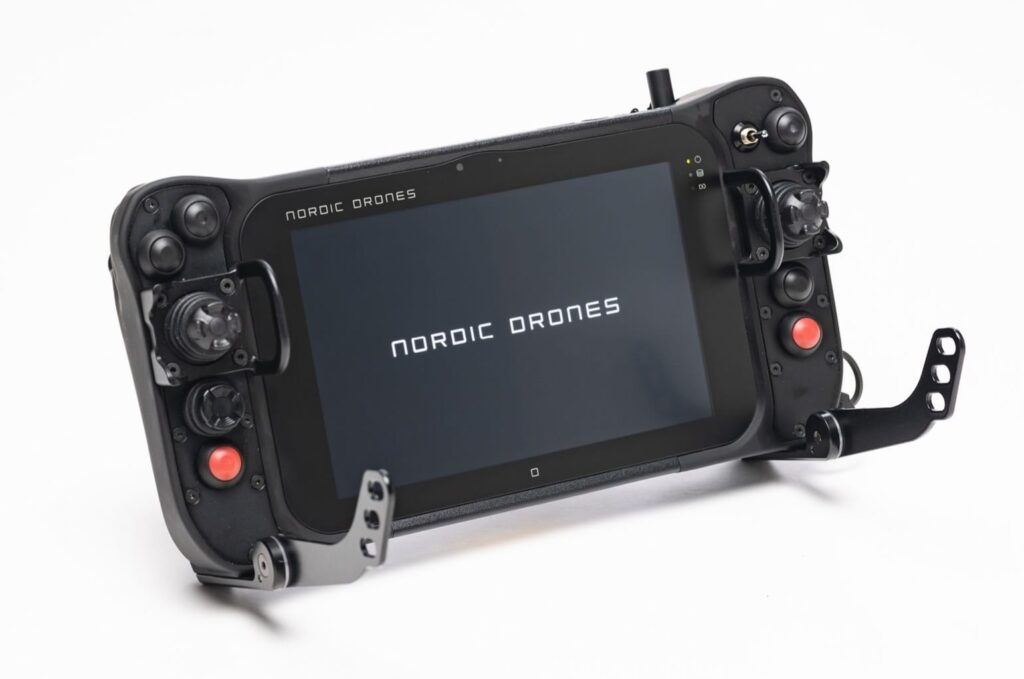

SkyControl

  • The SkyControl is designed for professional and military use
  • Meets MIL-STD-810G rating
  • Withstands a 1.5 m drop
  • Meets IP65 protection rating
  • The 700 cd/ m² screen is designed to work even in challenging conditions and can be used even with gloves on
  • All critical flight functions designed for physical switches and it´s easy to use in demanding conditions
  • The software integrated by Nordic Drones Oy enables easy use of flight functions with one device

Radio

  • Encryption AES 256-bit
  • Frequency range 2400–2482 MHz
  • Transmission power adjustment 100mW (standard) – 2500 mW (max)
  • Range (100 mW) 5900 m
  • Range (250 mW) 8000 m

Software and autopilot

Software

  • ND GroundControl

Autopilot

  • More accurate navigation capability through the fusion of GNSS and inertial measurement unit
  • Automatic security checks before flight
  • Capable of fully automated missions including takeoff and landing
  • Includes automatic return to home (RTH) function

Payload: Nextvision Raptor

  • The Raptor represents NextVision’s constant technological advancement that combines the features of an optical zoom and a thermal camera
  • The gimbal has an integrated TRIP5 – smart function that can recognize a person, vehicle and registration number
  • Zoom X80 (X40 + X2 digital), Thermal 1280 x 720
  • IPX4
  • A lightweight (640g) long range dual EO-IR stabilized camera turret

Payload: Nextvision DragonEye 2

  • Weight only 115 grams
  • Very light allows for a very long flight time
  • The gimbal has an integrated TRIP5 – smart function that can recognize a person, vehicle and registration number
  • Tracking feature
  • Zoom X40 (X20 + X2 digital), Thermal 640 x 480
  • IPX4
  • Offering unparalleled long range observation capability

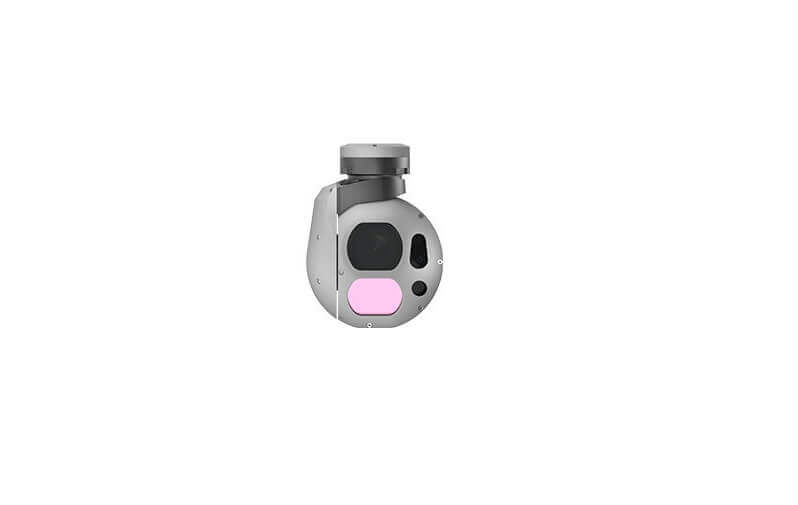

Payload: Threod Orca 130

  • Zoom X90 (X30 + X3 digital), Thermal 640 x 512
  • At 1.1kg  the ORCA 130 is the lightest 3 sensor gimbal on the market
  • Unrivaled accuracy comparable with much larger gimbals
  • Outstanding stabilization <75µrad

Special needs

The payload needs vary and develop constantly. New sensors and other transported or dropped payloads are our specialty.

Ethernet connection for the payload and the MAVLink protocol for autopilot communication enable versatile solutions.

Tell us more about your needs.

Transportation cases

  • Can be packed into a small space
  • Separate transport bags for batteries and gimbals
  • Durable and compact transpport cases
  • Transport cases meet the most demanding quality classifications and standards such as MIL-STD-810F and FED-STD-101C
  • Transport case for the drone, external dimensions: 62.5 x 50 x 36.6 cm
  • Power pack, external dimensions: 62.5 x 50 x 21.8 cm
  • Ready made tactical backpack, IP56, mil std

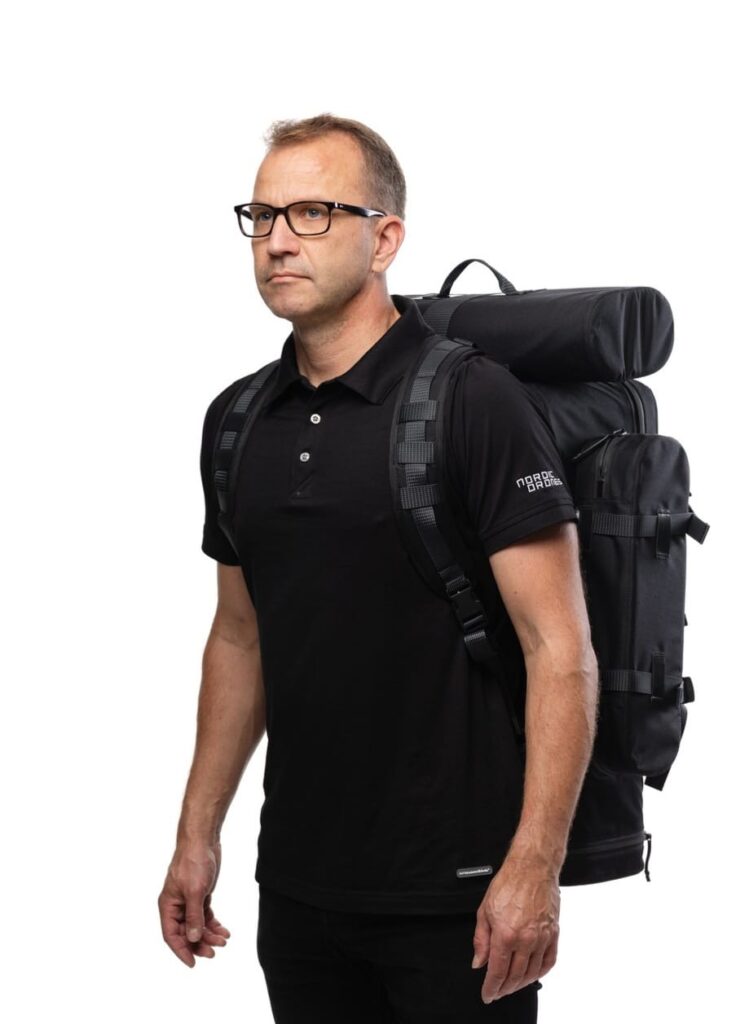

Tactical backpack

  • Durable and light
  • The drone can be packed for one or more units
  • IP65
  • Size 58 x 57 x 22 cm without payload
  • Can be assemblied in less than three minutes
  • A separate bag for the payload
